12.3.46 SendSignalAction

See SendSignalAction (from BasicActions ) on page 295.

*Attributes

No additional attributes

*Associations

No additional associations

*Constraints

No additional constraints

*Semantics

See SendSignalAction (from BasicActions ) on page 295.

*Notation

See SendSignalAction (from BasicActions ) on page 295.

*Examples

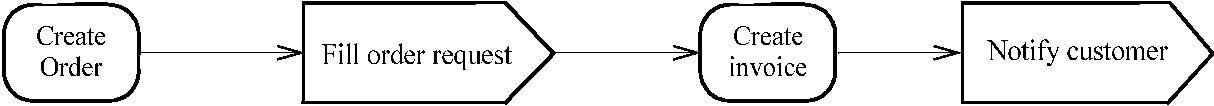

Figure 12.132 shows part of an order -processing workflow in which two signals are sent. An order is created (in response to some previous request that is not shown in the example). A signal is sent to the warehouse to fill and ship the order. Then an invoice is created and sent to the customer.

Figure 12.132 - Signal node notations

See SendSignalAction (from BasicActions ) on page 295.

*Changes from previous UML

See SendSignalAction (from BasicActions ) on page 295.
