13.2 Abstract syntax

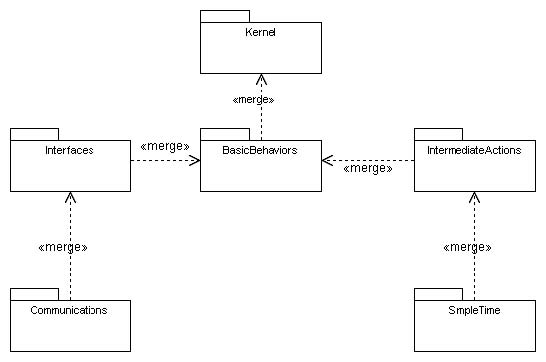

Figure 13.5 shows the dependencies of the CommonBehaviors packages.

   Figure 13.5 - Dependencies of the CommonBehaviors packages

   Package BasicBehaviors

Issue 8993 -change characteristics of Behavior::context

   9198 -make ‘context’ derived

   9191 -change lower bound on OpaqueBehavior ::body to 0

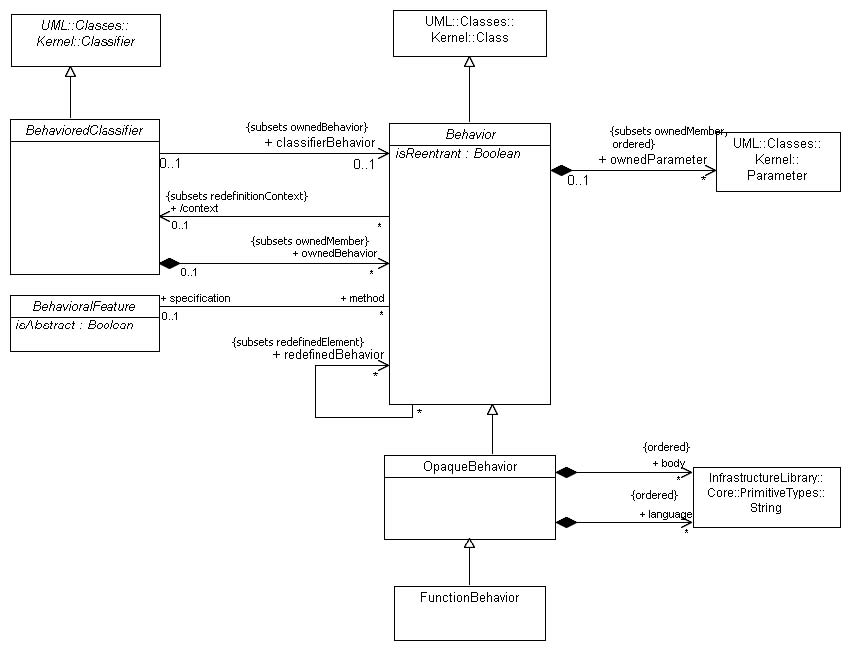

Figure 13.6 - Common Behavior

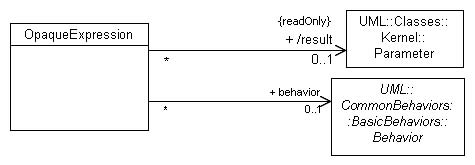

Figure 13.7 - Expression

Figure 13.8 - Precondition and postcondition constraints for behavior

   Package Communications

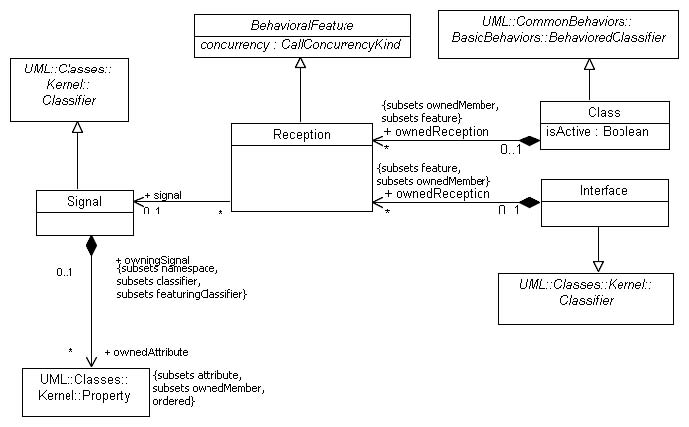

Figure 13.9 - Reception

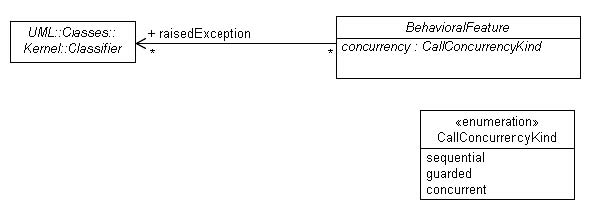

Figure 13.10 - Extensions to behavioral features

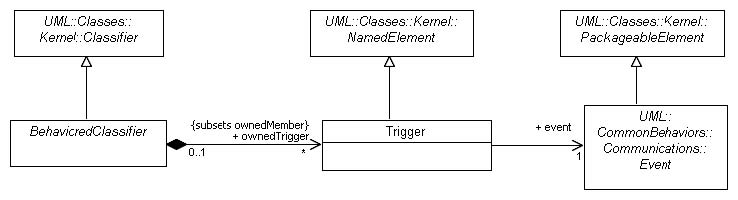

Figure 13.11 - Triggers

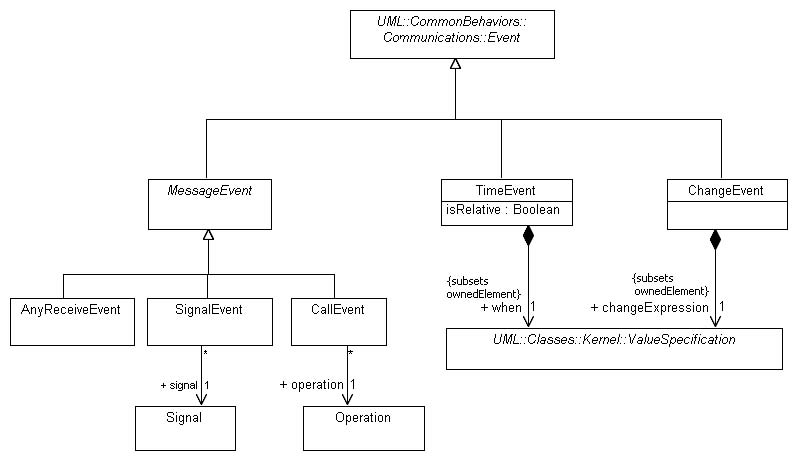

Figure 13.12 - Events

    SimpleTime

Issue 8894 -replace entire diagram

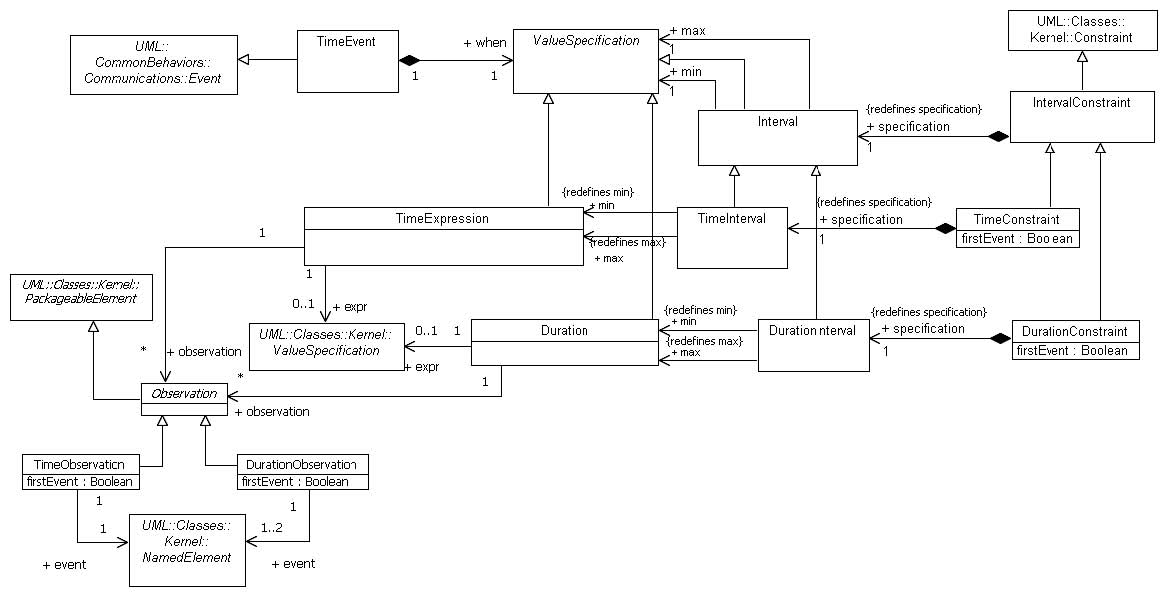

Figure 13.13 - SimpleTime
