14.2 Abstract syntax

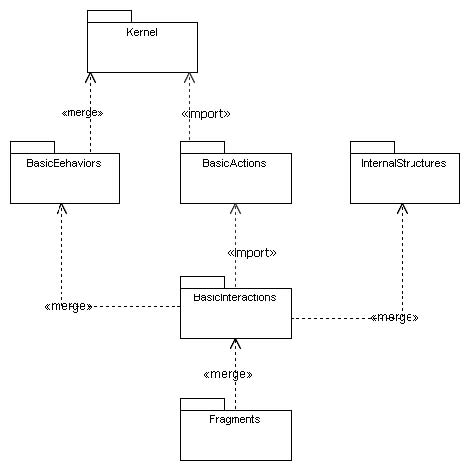

Figure 14.1 - Dependencies of the Interactions packages

   Package BasicInteractions

Issue 8784 - add ReceiveSignalEvent and ReceiveOperationEvent

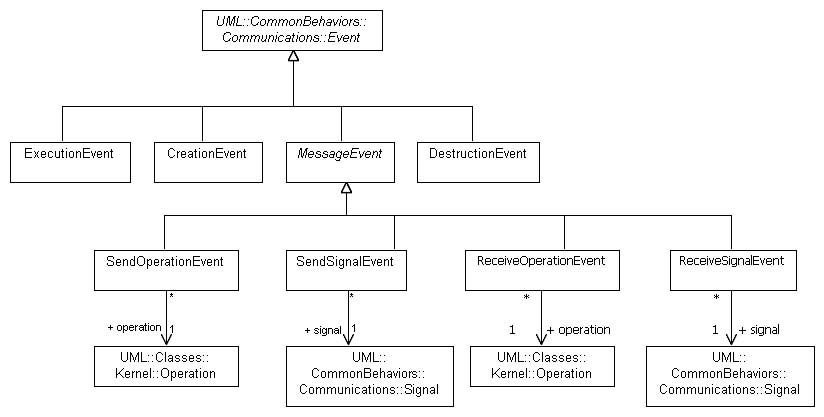

Figure 14.2 Events

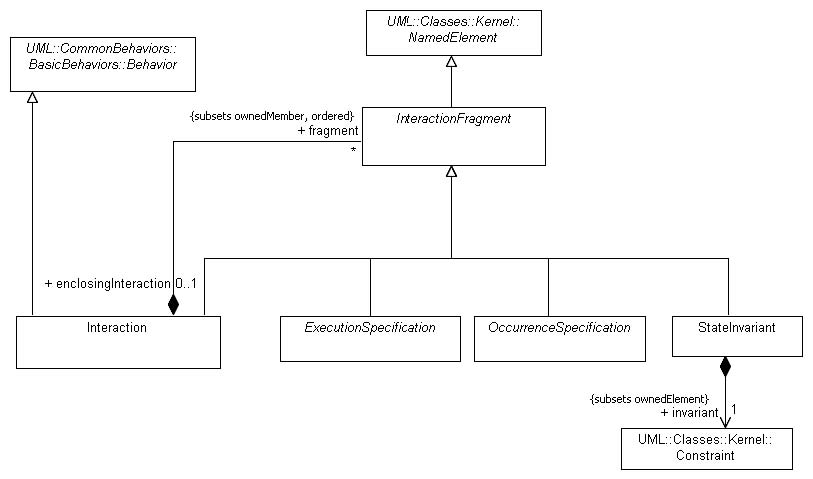

Figure 14.3 - Interactions

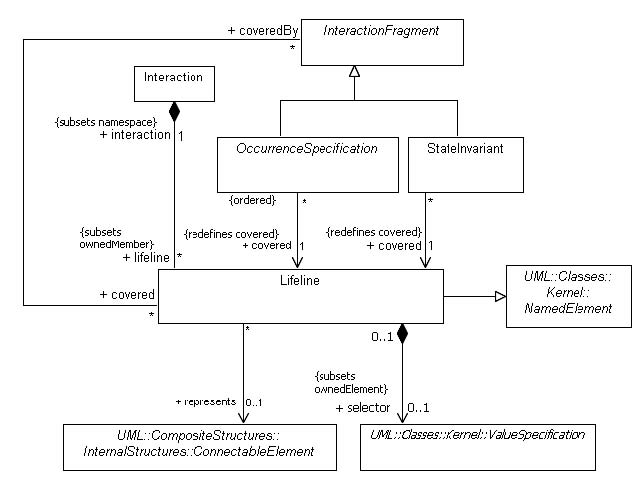

Figure 14.4 - Lifeline s

Issue 8784 -redirect MessageOccurrenceSpecification :;event to Event (from MessageEvent ) Editorial fix - OccurrenceSpecification should be concrete

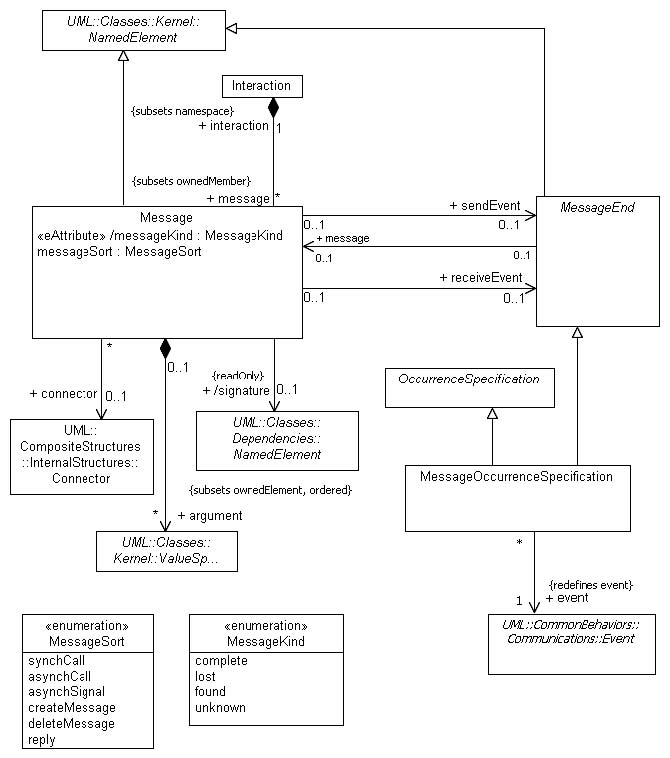

Figure 14.5 - Messages

Issue Editorial fix - OccurrenceSpecification should be concrete

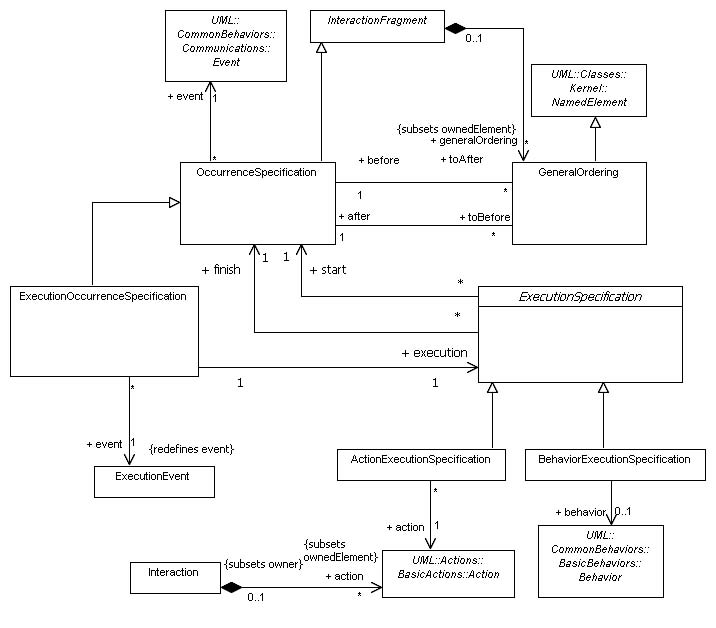

Figure 14.6 Occurrences

   Package Fragments

Issue 8341 -replace ‘InteractionOperator’ with ‘InteractionOperatorKind ’

Figure 14.7 - CombinedFragment s

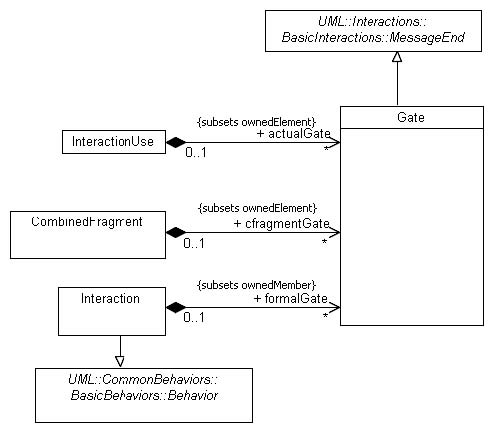

Figure 14.8 - Gate s

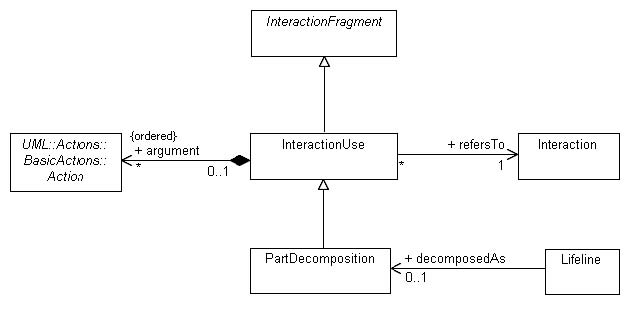

   Figure 14.9 - InteractionUse s
