14.4 Diagrams

*Graphis Nodes

   The graphic nodes that can be included in sequence diagrams are shown in Table 14.1 .

Node Type	Notation			Reference
InteractionUse		ref	N	See InteractionUse (from Fragments ) on page 508.
CombinedFragment	alt		See CombinedFragment (from Fragments ) on page 487.
Issue 7995 Split into separate rows for StateInvar iant and Continuati on. StateInvariant	:Y p==15	See StateInvariant (from BasicInteractions ) on page 524.
Issue 7995 Split into separate rows for StateInvar iant and Continuati on. Continuation s	Issue 7995 Add figure. :X :Y Continue	See Continuation (from Fragments ) on page 494.

Node Type	Notation			Reference
Coregion	s[u]:B	m3 m2		See explanation under parallel in CombinedFragment (from Fragments ) on page 487.
Issue 7990 -Rename Stop. DestructionEvent				See Figure 14.11 on page 492.
DurationConstraint Duration Observation	:User {d..3*d}	Code d=duration CardOut {0..13} OK		See Figure 14.26 on page 534.
TimeConstraint TimeObservation	{t..t+3}	CardOut {0..13} OK t=now	See Figure 14.26 on page 534.

*Graphic Paths

Issue 8352 -add period at end

   The graphic paths between the graphic nodes are given in Table 14.2 .

Node Type	Notation		Reference
Message		Code doit(z)	Messages come in different variants depending on what kind of Message they convey. Here we show an asynchronous message, a call and a reply. These are all complete messages. See Message (from BasicInteractions ) on page 512.
Lost Message		lost	Lost messages are messages with known sender, but the reception of the message does not happen. See Message (from BasicInteractions ) on page 512.
Found Message		found	Found messages are messages with known receiver, but the sending of the message is not described within the specification. See Message (from BasicInteractions ) on page 512.
GeneralOrdering			See GeneralOrdering (from BasicInteractions ) on page 501.

*Examples

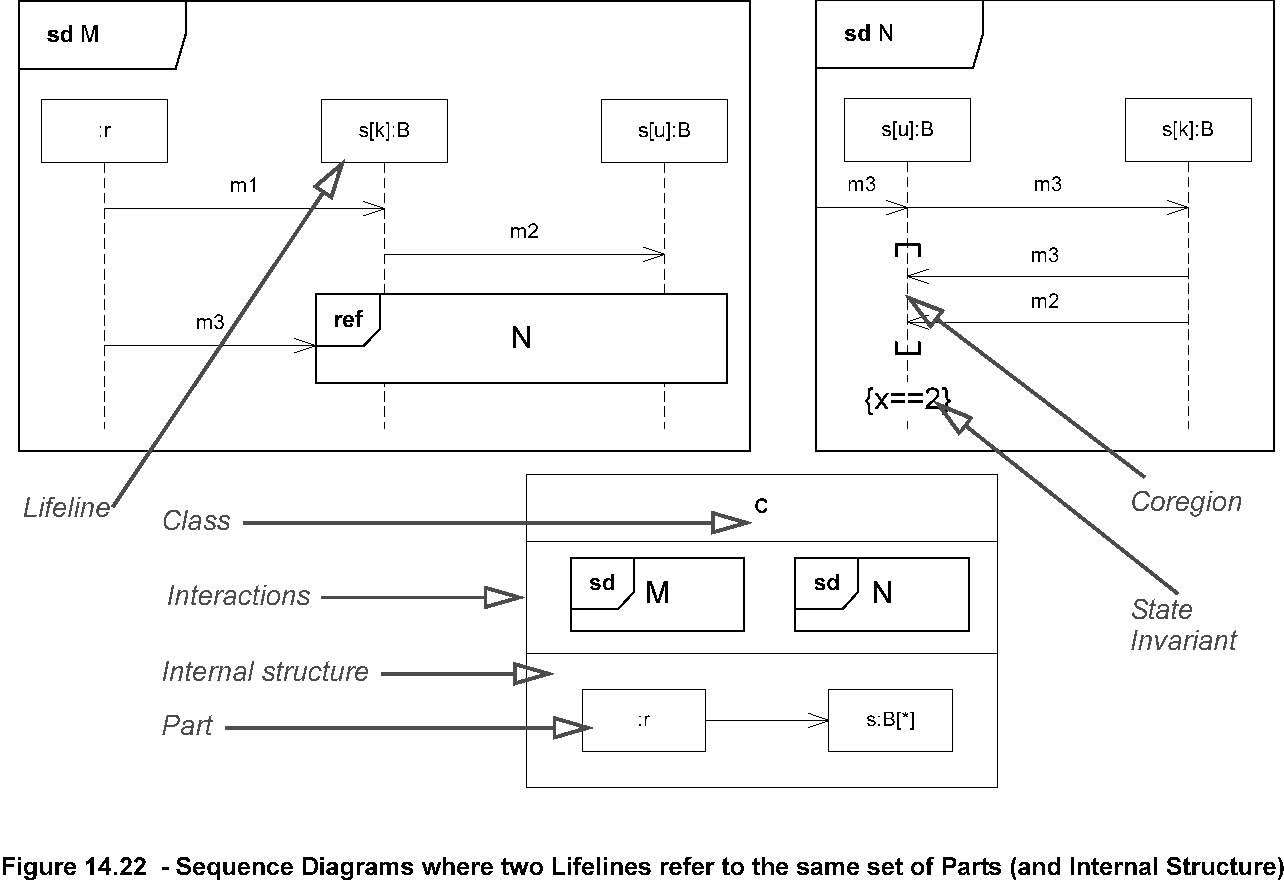

   The sequence diagrams shown in Figure 14.22 show a scenario where r sends m1 to s[k] (which is of type B), and s[k] sends m2 to s[u]. In the meantime independent of s[k] and s[u], r may have sent m3 towards the InteractionUse N through a gate. Following the m3 message into N we see that s[u] then sends another m3 message to s[k]. s[k] then sends m3 and then m2 towards s[u]. s[u] receives the two latter messages in any order (coregion). Having received these messages, we state an invariant on a variable x (most certainly owned by s[u] ).

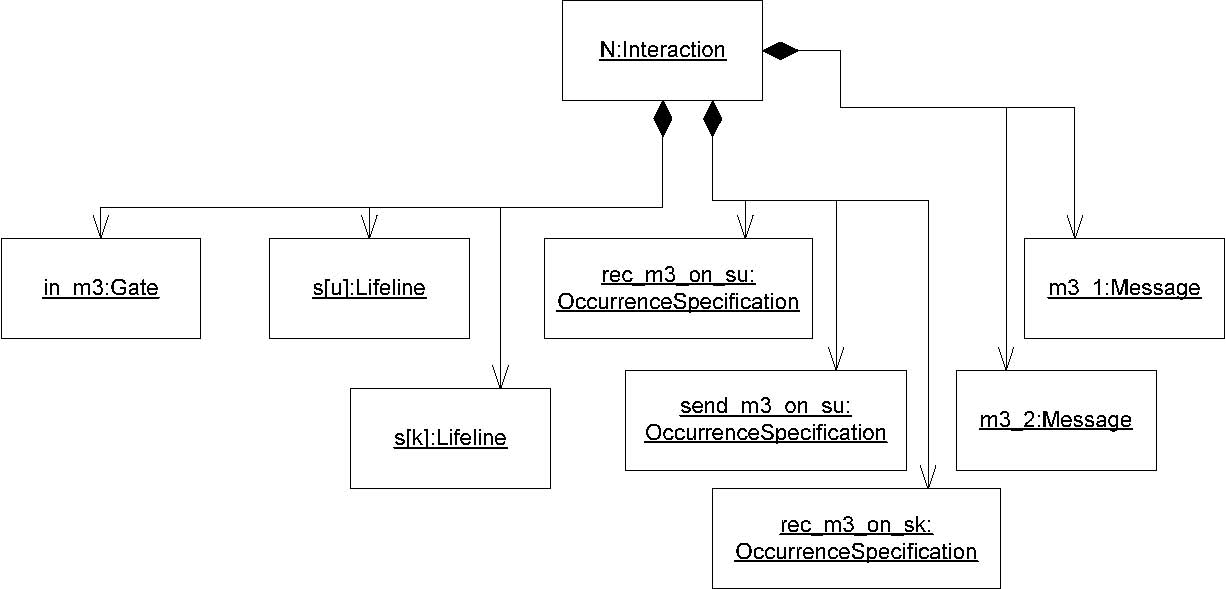

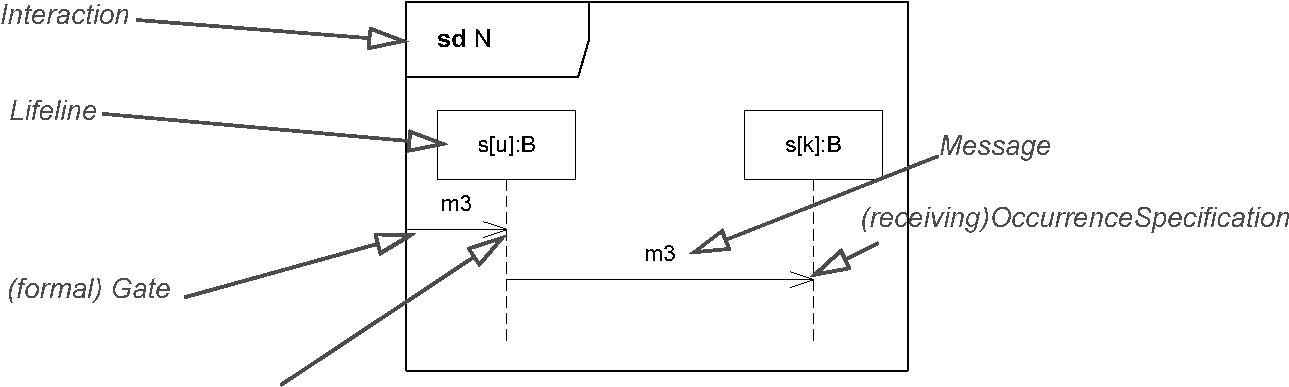

   In order to explain the mapping of the notation onto the metamodel we have pointed out areas and their corresponding metamodel concept in Figure 14.23. Let us go through the simple diagram and explain how the metamodel is built up. The whole diagram is an Interaction (named N). There is a formal gate (with implicit name in_m3) and two Lifeline s (named s[u] and s[k] ) that are contained in the Interaction. Furthermore the two Messages (occurrences) both of the same type m3, implicitly named m3_1 and m3_2 here, are also owned by the Interaction. Finally there are the three OccurrenceSpecifications.

   We have omitted in this metamodel the objects that are more peripheral to the Interaction model, such as the Part s and the class B and the connector referred by the Message.

Issue 8349 - replace ‘EventOccurrence’ with ‘OccurrenceSpecification’; add underlines in lower figure

   OccurrenceSpecification

   Figure 14.23 - Metamodel elements of a sequence diagrams

Issue 7996 -Annotate figure 14.24.

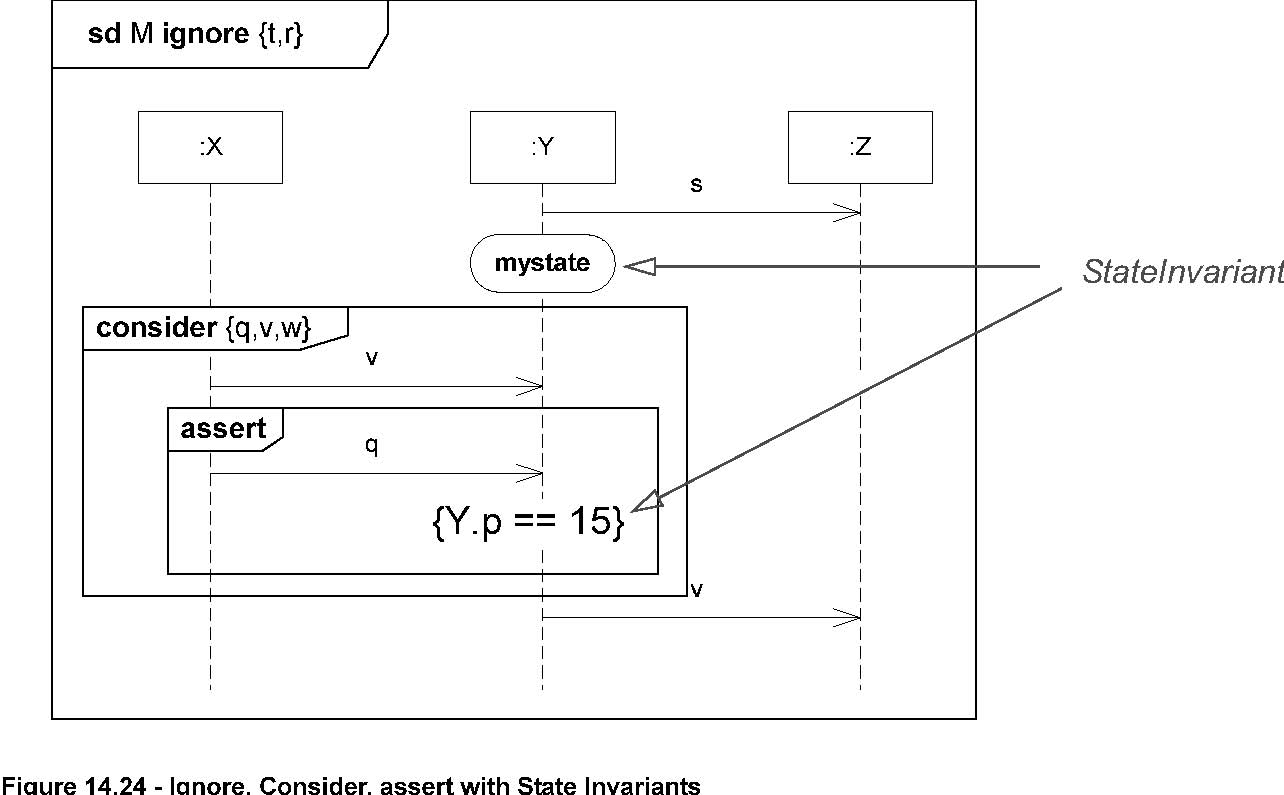

   In Figure 14.24 we have an Interaction M, which considers message types other than t and r. This means that if this Interaction is used to specify a test of an existing system and when running that system a t or an r occurs, these messages will be ignored by this specification. t and r will of course be handled in some manner by the running system, but how they are handled is irrelevant for our Interaction shown here.

   The State invariant given as a state mystate will be evaluated at runtime directly prior to whatever event occurs on Y after mystate. This may be the reception of q as specified within the assert-fragment, or it may be an event that is specified to be insignificant by the filters.

   The assert fragment is nested in a consider fragment to mean that we expect a q message to occur once a v has occurred here. Any occurrences of messages other than v, w, and q will be ignored in a test situation. Thus the appearance of a w message after the v is an invalid trace.

   The state invariant given in curly brackets will be evaluated prior to the next event occurrence after that on Y.

   Internal Structure and corresponding Collaboration Uses

   CollaborationUse

   binding Parts

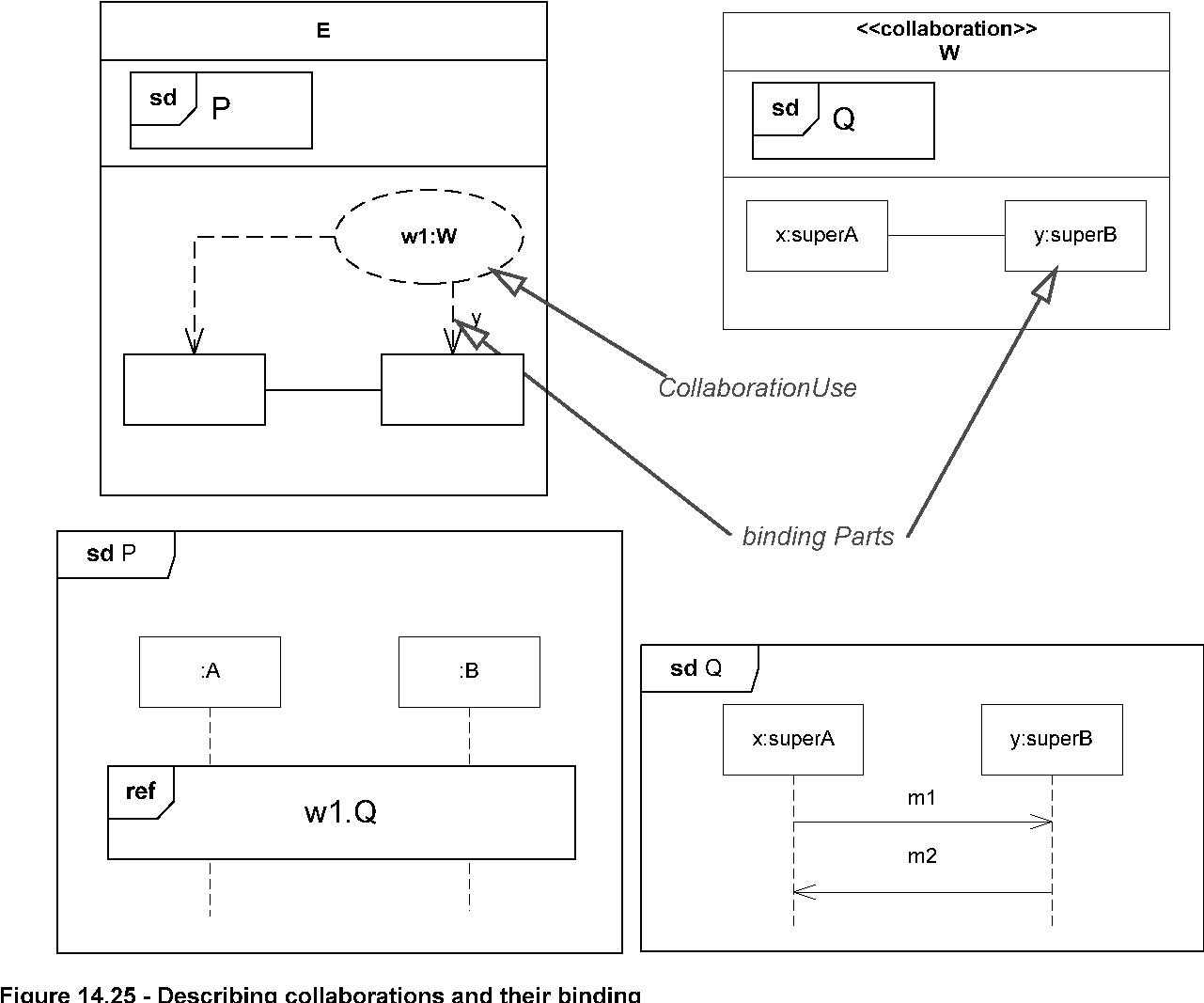

    The example in Figure 14.25 shows how collaboration uses are employed to make Interactions of a Collaboration available in another classifier.

   The collaboration W has two parts x and y that are of types (classes) superA and superB respectively. Classes A and B are specializations of superA and superB respectively. The Sequence Diagram Q shows a simple Interaction that we will reuse in another environment. The class E represents this other environment. There are two anonymous parts :A and :B and the CollaborationUse w1 of Collaboration W binds x and y to :A and :B respectively. This binding is legal since :A and :B are parts of types that are specializations of the types of x and y.

   In the Sequence Diagram P (owned by class E) we use the Interaction Q made available via the CollaborationUse w1.

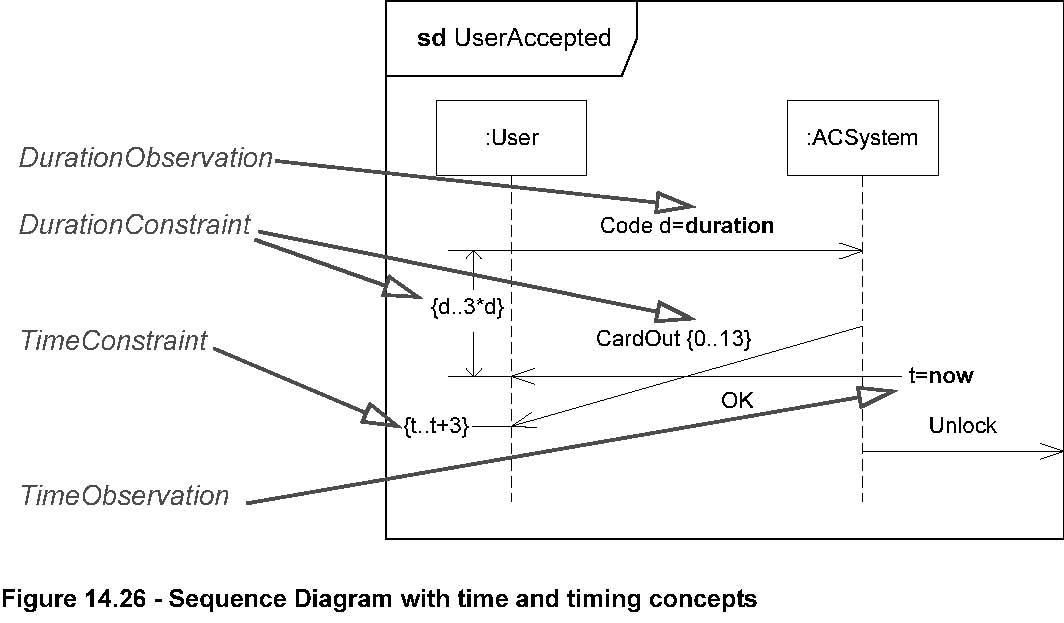

    The Sequence Diagram in Figure 14.26 shows how time and timing notation may be applied to describe time observation and timing constraints. The :User sends a message Code and its duration is measured. The :ACSystem will send two messages back to the :User. CardOut is constrained to last between 0 and 13 time units. Furthermore the interval between the sending of Code and the reception of OK is constrained to last between d and 3*d where d is the measured duration of the Code signal. We also notice the observation of the time point t at the sending of OK and how this is used to constrain the time point of the reception of CardOut.

   Communication Diagrams

   Communication Diagrams focus on the interaction between Lifeline s where the architecture of the internal structure and how this corresponds with the message passing is central. The sequencing of Messages is given through a sequence numbering scheme.

   Communication Diagrams correspond to simple Sequence Diagrams that use none of the structuring mechanisms such as InteractionUse s and CombinedFragment s. It is also assumed that message overtaking (i.e., the order of the receptions are different from the order of sending of a given set of messages) will not take place or is irrelevant.

*Graphical Nodes

   Communication diagram nodes are shown in Table 14.3 .

*Graphic Paths

   Graphic paths of communication diagrams are given in Table 14.4 .

   Table 14.4 - Graphic paths included in communication diagrams

   Node Type Notation Reference

   Message See Message (from BasicInteractions ) on page 512 and Sequence expression on page 536. The arrow shown

   1a m1()

   here indicates the communication direction.

*Examples

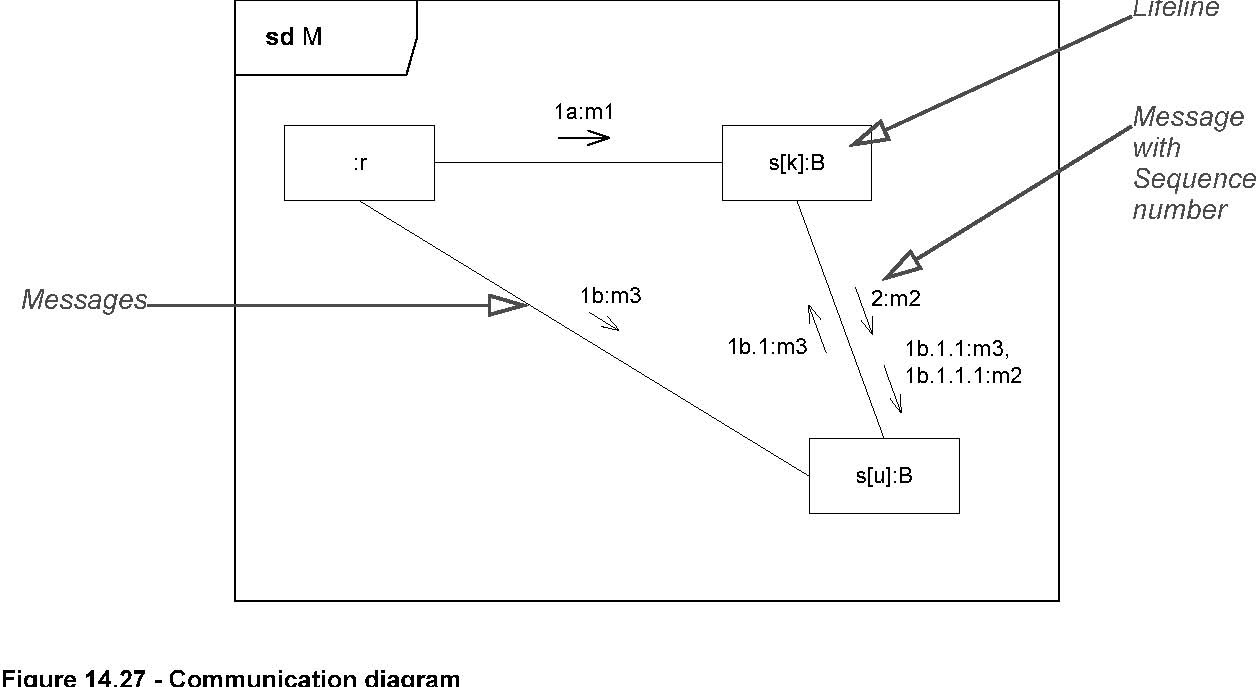

   The Interaction described by a Communication Diagram in Figure 14.27 shows messages m1 and m3 being sent concurrently from :r towards two instances of the part s. The sequence numbers show how the other messages are sequenced. 1b.1 follows after 1b and 1b.1.1 thereafter etc. 2 follows after 1a and 1b.

*Sequence expression

   The sequence-expression is a dot-separated list of sequence-terms followed by a colon (‘:’).

   sequence-term ‘.’ . . . ‘:’

   Each term represents a level of procedural nesting within the overall interaction. If all the control is concurrent, then nesting does not occur. Each sequence-term has the following syntax:

   [ integer | name ] [ recurrence ]

   The integer represents the sequential order of the Message within the next higher level of procedural calling. Messages that differ in one integer term are sequentially related at that level of nesting. Example: Message 3.1.4 follows Message

   3.1.3 within activation 3.1. The name represents a concurrent thread of control. Messages that differ in the final name are concurrent at that level of nesting. Example: Message 3.1a and Message 3.1b are concurrent within activation 3.1. All threads of control are equal within the nesting depth.

   The recurrence represents conditional or iterative execution. This represents zero or more Messages that are executed depending on the conditions involved. The choices are:

   ‘*’ ‘[’ iteration-clause ‘]’an iteration‘[’ guard ‘]’a branch

   An iteration represents a sequence of Messages at the given nesting depth. The iteration clause may be omitted (in which case the iteration conditions are unspecified). The iteration-clause is meant to be expressed in pseudocode or an actual programming language, UML does not prescribe its format. An example would be: *[i := 1..n].

   A guard represents a Message whose execution is contingent on the truth of the condition clause. The guard is meant to be expressed in pseudocode or an actual programming language; UML does not prescribe its format. An example would be: [x > y].

   Note that a branch is notated the same as an iteration without a star. One might think of it as an iteration restricted to a single occurrence.

   The iteration notation assumes that the Messages in the iteration will be executed sequentially. There is also the possibility of executing them concurrently. The notation for this is to follow the star by a double vertical line (for parallelism): *||.

   Note that in a nested control structure, the recurrence is not repeated at inner levels. Each level of structure specifies its own iteration within the enclosing context.

   Interaction Overview Diagrams

    Interaction Overview Diagrams define Interactions (described in Chapter 14, Interactions) through a variant of Activity Diagrams (described in Chapter 6, Activities) in a way that promotes overview of the control flow.

   Interaction Overview Diagrams focus on the overview of the flow of control where the nodes are Interactions or InteractionUse s. The Lifeline s and the Messages do not appear at this overview level.

*Graphis Nodes

   Interaction Overview Diagrams are specialization of Activity Diagrams that represent Interactions.

   Interaction Overview Diagrams differ from Activity Diagrams in some respects.

Issue 8030 - Remove reference to ActivityInvocations.

1. In place of ObjectNodes of Activity Diagrams, Interaction Overview Diagrams can only have either (inline) Interactions or InteractionUse s. Inline Interaction diagrams and InteractionUse s are considered special forms of CallBehaviorAction.

2. Alternative Combined Fragments are represented by a Decision Node and a corresponding Merge Node.

3. Parallel Combined Fragments are represented by a Fork Node and a corresponding Join Node.

4. Loop Combined Fragments are represented by simple cycles.

5. Branching and joining of branches must in Interaction Overview Diagrams be properly nested. This is more restrictive than in Activity Diagrams.

6. Interaction Overview Diagrams are framed by the same kind of frame that encloses other forms of Interaction Diagrams. The heading text may also include a list of the contained Lifeline s (that do not appear graphically).

   .

*Examples

   InteractionUse

   Duration Constraint

   (inline) Interaction

   decision interaction constraint

   Interaction Overview Diagrams use Activity diagram notation where the nodes are either Interactions or InteractionUse s. Interaction Overview Diagrams are a way to describe Interactions where Messages and Lifeline s are abstracted away. In the purest form all Activities are InteractionUse s and then there are no Messages or Lifeline s shown in the diagram at all.

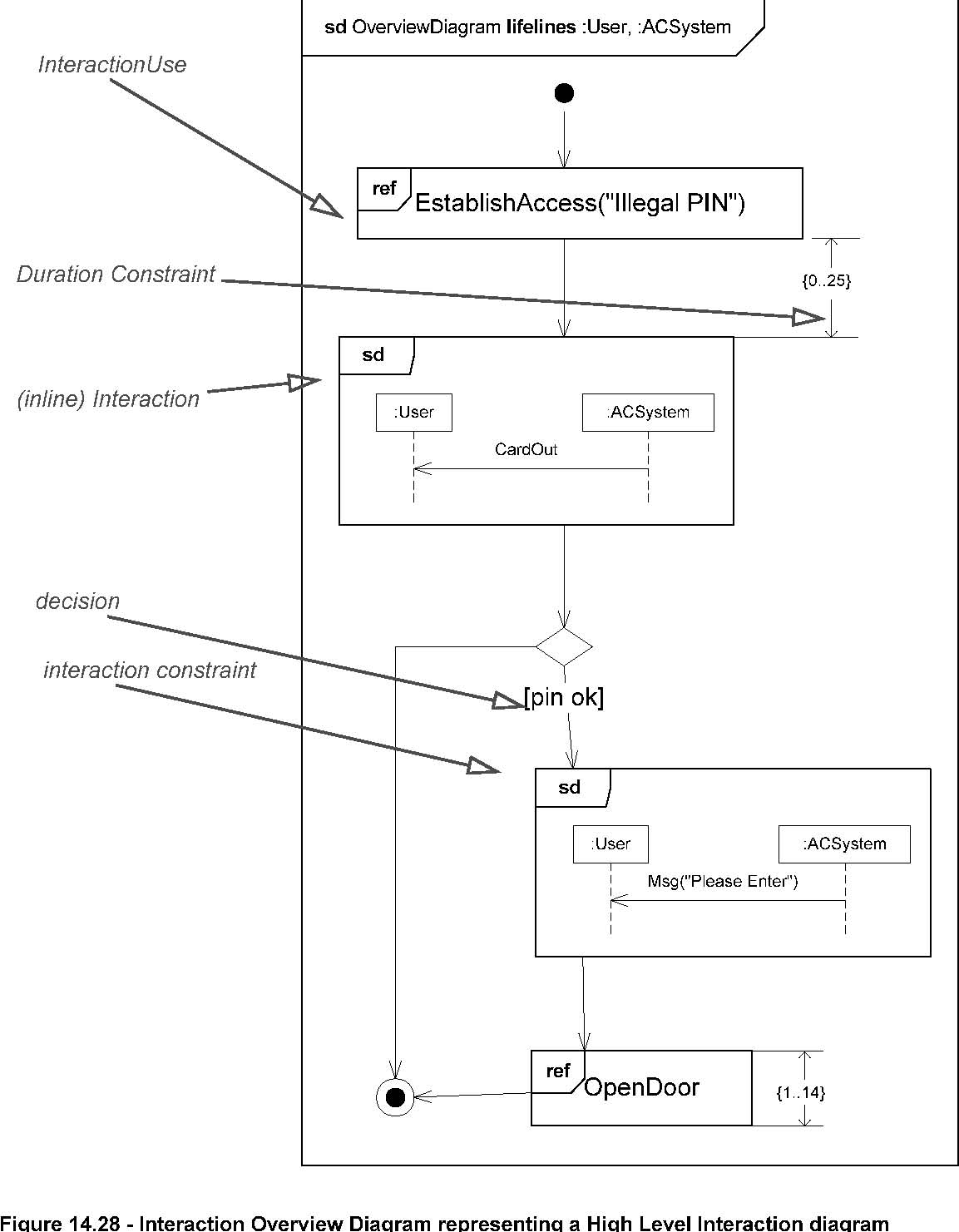

    Figure 14.28 is another way to describe the behavior shown in Figure 14.17, with some added timing constraints. The Interaction EstablishAccess occurs first (with argument Illegal PIN) followed by weak sequencing with the message CardOut which is shown in an inline Interaction. Then there is an alternative as we find a decision node with an InteractionConstraint on one of the branches. Along that control flow we find another inline Interaction and an InteractionUse in (weak) sequence.

   Timing Diagram

   Timing Diagrams are used to show interactions when a primary purpose of the diagram is to reason about time. Timing diagrams focus on conditions changing within and among Lifeline s along a linear time axis.

   Timing diagrams describe behavior of both individual classifiers and interactions of classifiers, focusing attention on time of occurrence of events causing changes in the modeled conditions of the Lifeline s.

*Graphis Nodes

   The graphic nodes and paths that can be included in timing diagrams are shown in Table 14.6 .

Node Type	Notation	Reference
Message label	mymsglab mymsglab	Labels are only notational shorthands used to prevent cluttering of the diagrams with a number of messages crisscrossing the diagram between Lifeline s that are far apart. The labels denote that a Message may be disrupted by introducing labels with the same name.
State or condition timeline	Initializing Acquiring Reporting Idle	This is the state of the classifier or attribute, or some testable condition, such as an discrete enumerable value. See also StateInvariant (from BasicInteractions ) on page 524. It is also permissible to let the state-dimension be continuous as well as discrete. This is illustrative for scenarios where certain entities undergo continuous state changes, such as temperature or density.
General value lifeline	x"00FF" x"FFFF"	Shows the value of the connectable element as a function of time. Value is explicitly denoted as text. Crossing reflects the event where the value changed.
Lifeline	instance 1 Instance 2	See Lifeline (from BasicInteractions , Fragments ) on page 511.
GeneralOrdering		See GeneralOrdering (from BasicInteractions ) on page 501.
DestructionEvent		See DestructionEvent (from BasicInteractions ) on page 496.

*Examples

   Timing diagrams show change in state or other condition of a structural element over time. There are a few forms in use. We shall give examples of the simplest forms.

   Sequence Diagrams as the primary form of Interactions may also depict time observation and timing constraints. We show in Figure 14.26 an example in Sequence Diagram that we will also give in Timing Diagrams.

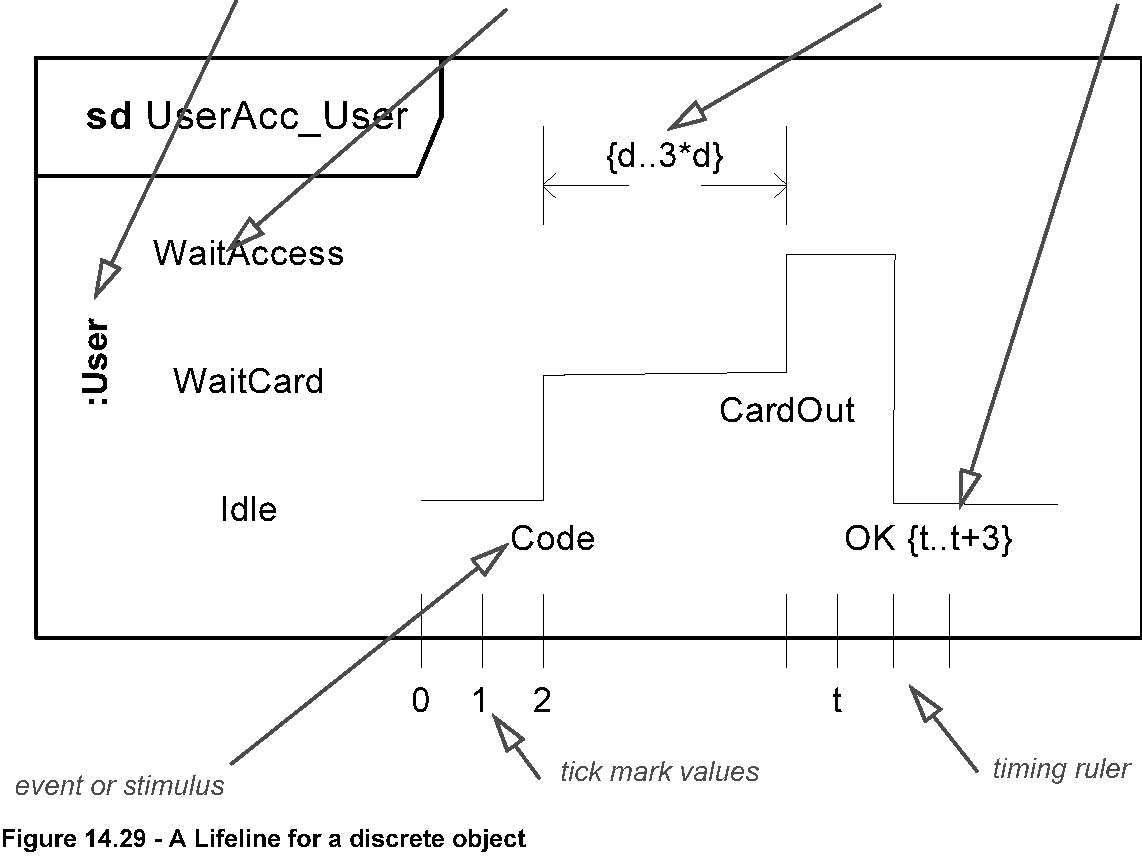

   The :User of the Sequence Diagram in Figure 14.26 is depicted with a simple Timing Diagram in Figure 14.29.

   Lifeline State or condition DurationConstraint time constraint

   012 t

   tick mark values timing ruler

   The primary purpose of the timing diagram is to show the change in state or condition of a lifeline (representing a Classifier Instance or Classifier Role) over linear time. The most common usage is to show the change in state of an object over time in response to accepted events or stimuli. The received events are annotated as shown when it is desirable to show the event causing the change in condition or state.

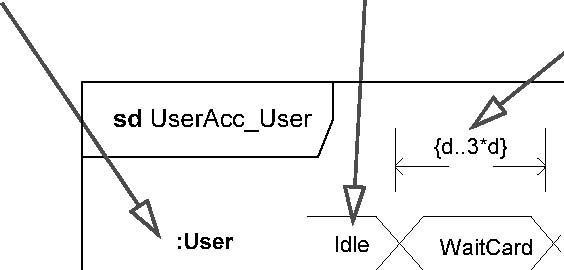

   Sometimes it is more economical and compact to show the state or condition on the vertical Lifeline as shown in Figure

    14.30 .

   Lifeline State or condition DurationConstraint

   :User Idle

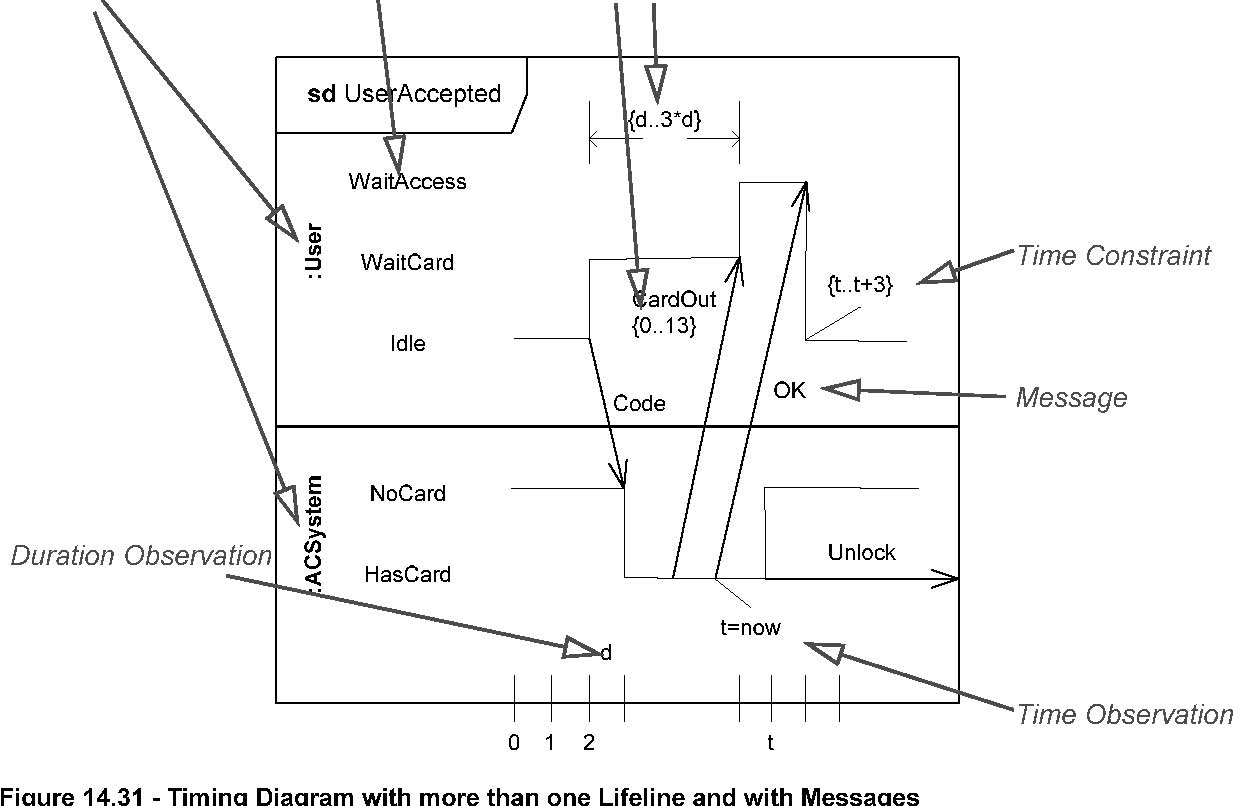

*Changes from previous UML

   The Timing Diagrams were not available in UML 1.4.
