*Generalizations
•
TemplateableElement (from Templates) on page 649
•
Operation (from Kernel , Interfaces ) on page 105
(merge increment)
Description
Operation specializes TemplateableElement in order to support specification of template operations and bound operations.
Attributes
No additional attributes
Associations
No additional associations
Constraints
No additional constraints
Semantics
An Operation supports the ability to be defined as a template. An operation may be defined to be bound to template operation(s).
Notation
The template parameters and template parameter binding of a template operation are two lists in between the name of the operation
and the parameters of the operation.
<visibility< <name> ‘<‘ <template-parameter-list> ‘>’ ‘<<‘ <binding-expression-list> ‘>>’‘( ‘ <parameter> [‘,’<parameter>]*
‘)’ [‘:’ <property-string>]
OperationTemplateParameters
Issue 8587 - fix capitalization of ‘operation’

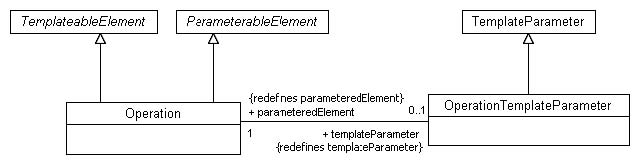

The operation template diagram supports the specification of operation template parameters.
Issue 8589 - add redefines constraints to OperationTemplateParameter::parameteredElement and Operation::parameter 9110 - rename
‘parameter’ to ‘templateParameter’ and add redefines constraint Editorial change - combine figure 17.29 into figure 17.30
