UCEd Domain Model Edition tool

The following Figure shows UCEd Domain Model Edition tool.

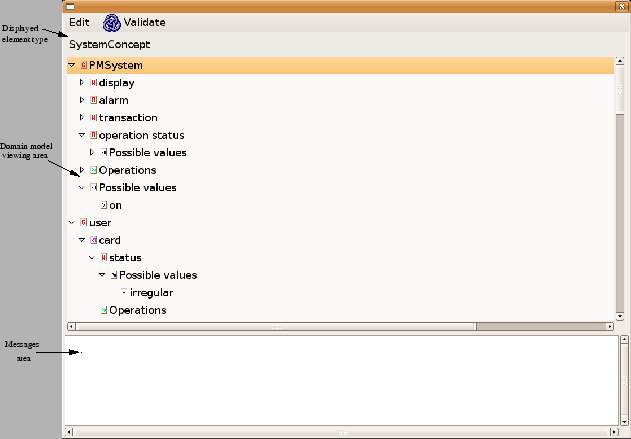

**Figure 3.3:** UCEd Domain Model Edition tool.
$\begin{figure}\centering \epsfxsize =5.5in \epsfbox{ucedDom.eps} \end{figure}$

The tool has the same look and functionality as the Scenario Edition tool.

The domain model is displayed as a tree in a domain model viewing area. Elements are edited by double-clicking or by using the contextual menu. The tool message area displays various messages including validation error messages. The Edit menu allows common edition actions, while the Validate menu launches domain model validation.

Subsections

Edit menu
Domain Model element types
Domain elements edition
Editors key combinations
